Step 1

Loupes Selection

Before proceeding, decide on the loupe style that best suits your requirements.

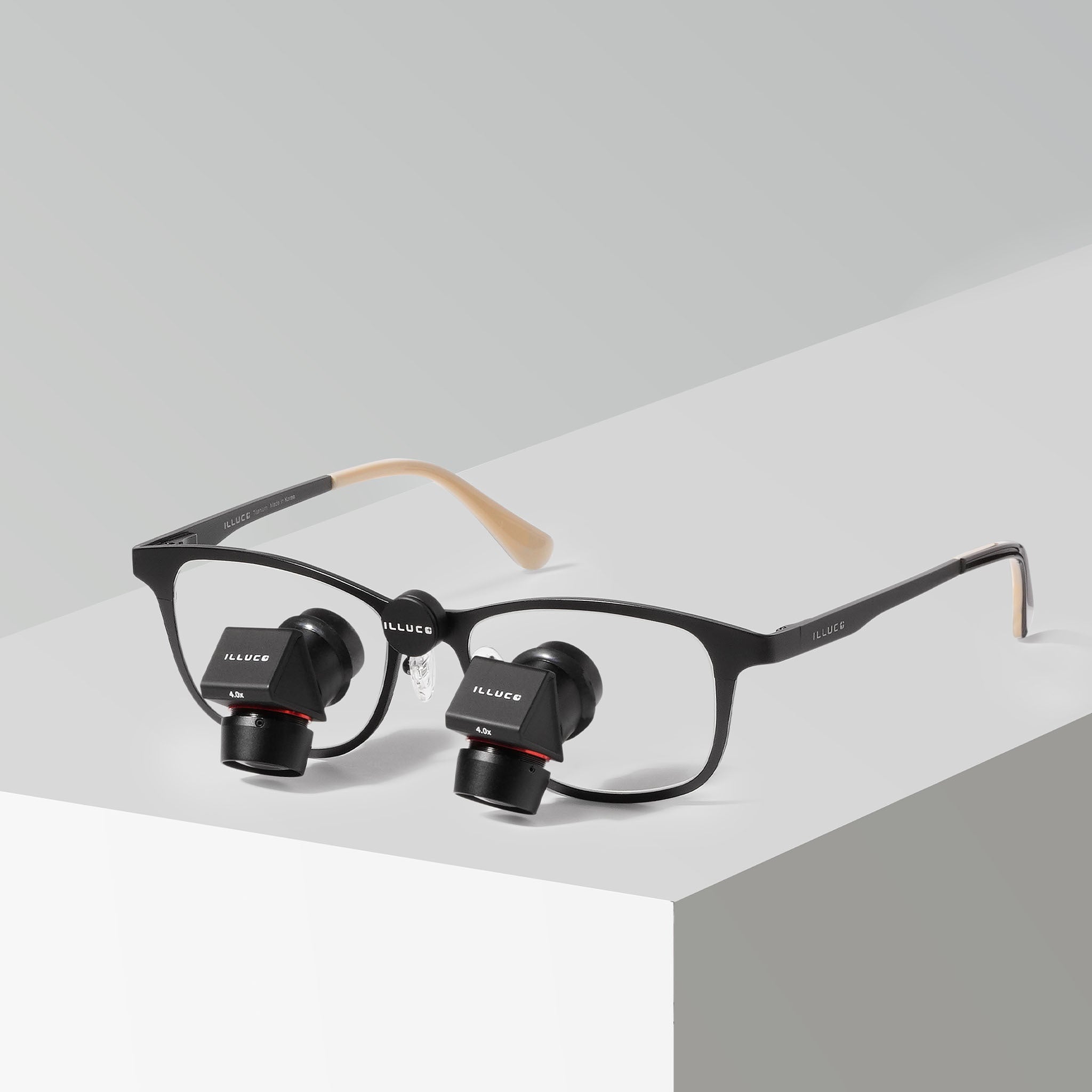

  • Ergo X Angled Loupes

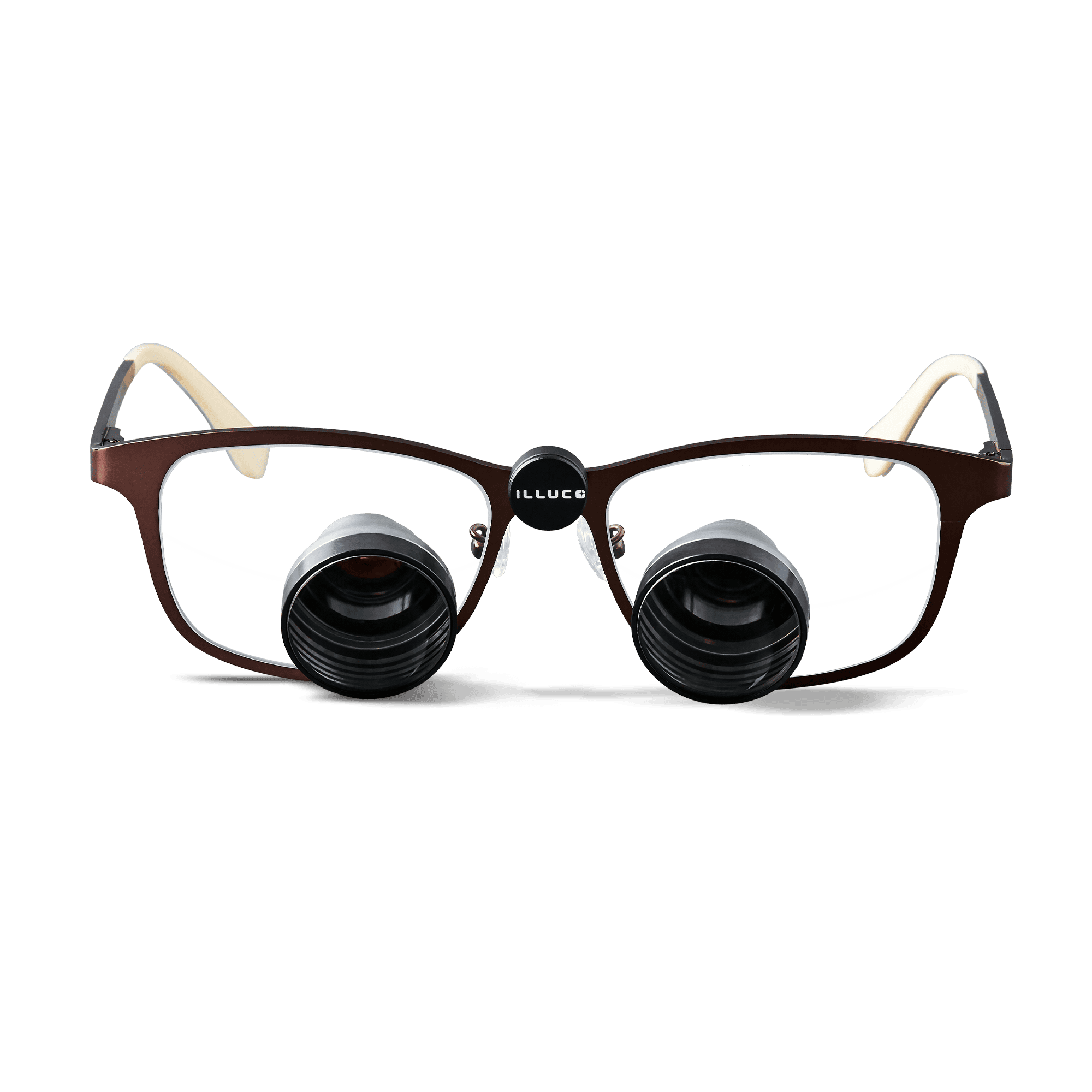

  • TTL Loupes

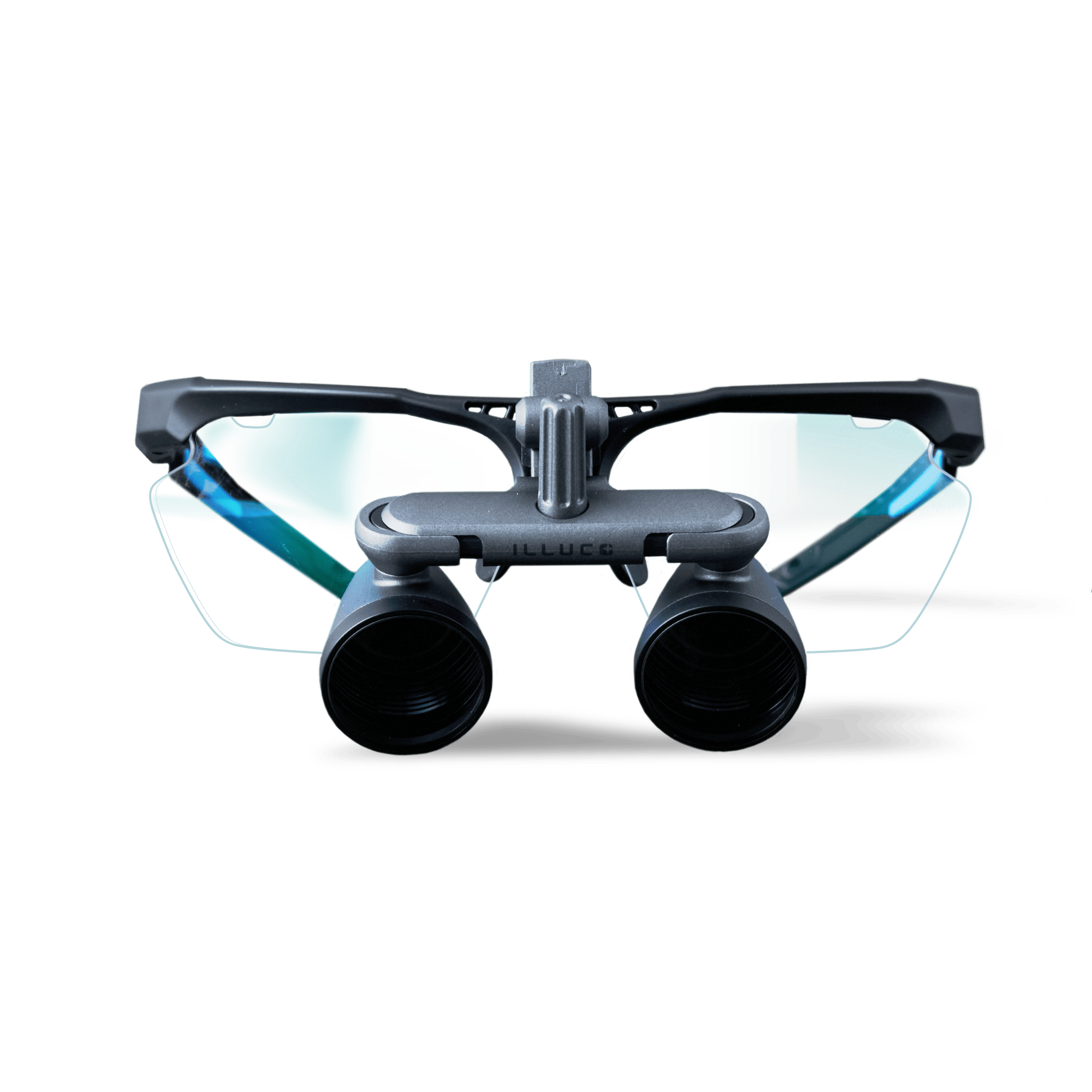

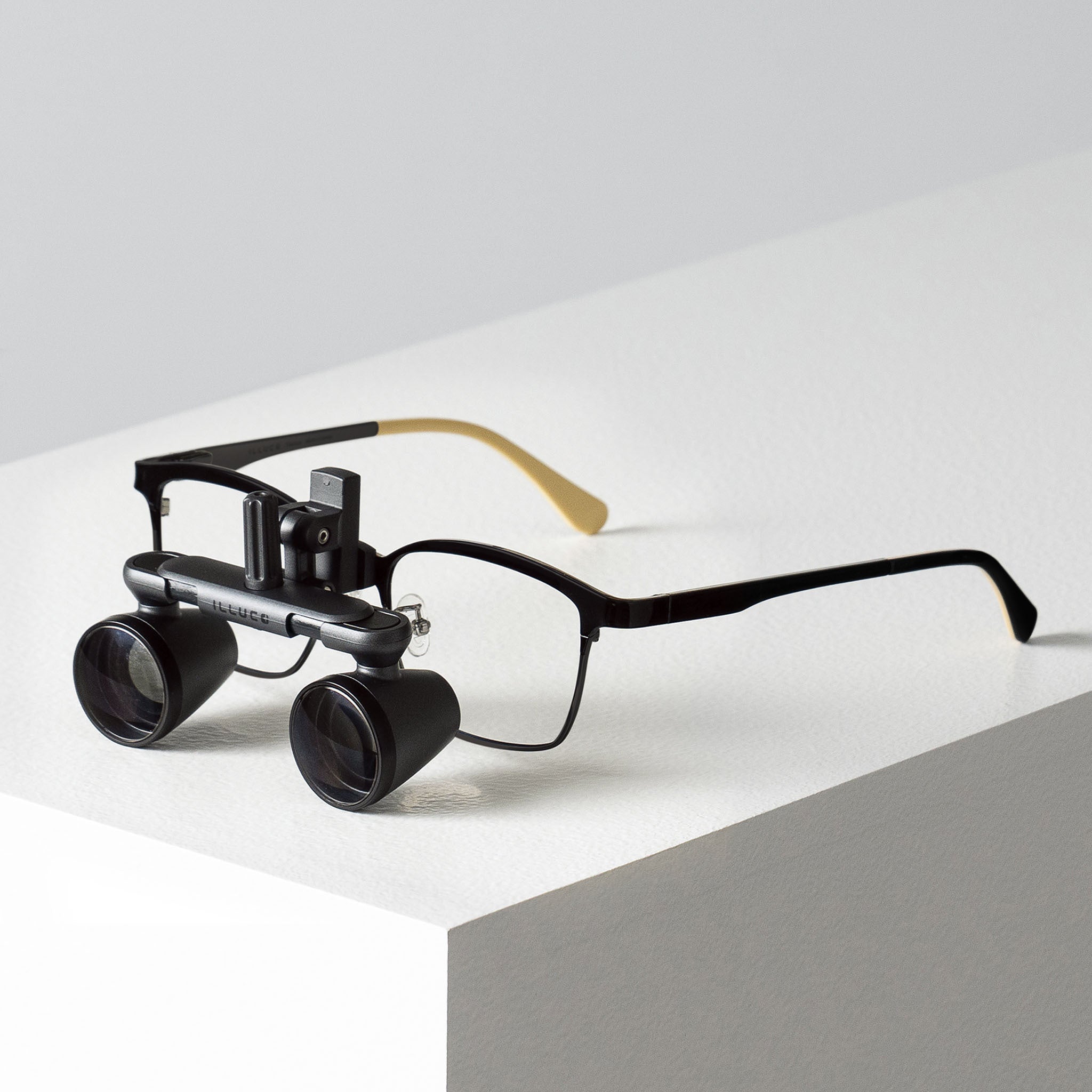

  • Flip-Up Loupes

Classic

Toggle Preview

✱  for headlight attachment only
  • TTL Galilean 2.5x 3.0x 3.5x
  • TTL Prismatic 4.0x 4.5x 5.5x 6.5x
  • Flip-Up 3.0x Angled 3.0x 4.0x 5.5x

Atlas

Toggle Preview

  • TTL Galilean 2.5x 3.0x 3.5x
  • TTL Prismatic 4.0x 4.5x 5.5x 6.5x
  • Flip-Up 3.0x Angled 3.0x 4.0x 5.5x

Sleek

Toggle Preview

  • TTL Galilean 2.5x 3.0x 3.5x
  • TTL Prismatic 4.0x 4.5x 5.5x 6.5x
  • Flip-Up 3.0x Angled 3.0x 4.0x 5.5x

Sport

Toggle Preview

  • TTL Galilean 2.5x 3.0x 3.5x
  • Flip-Up 3.0x

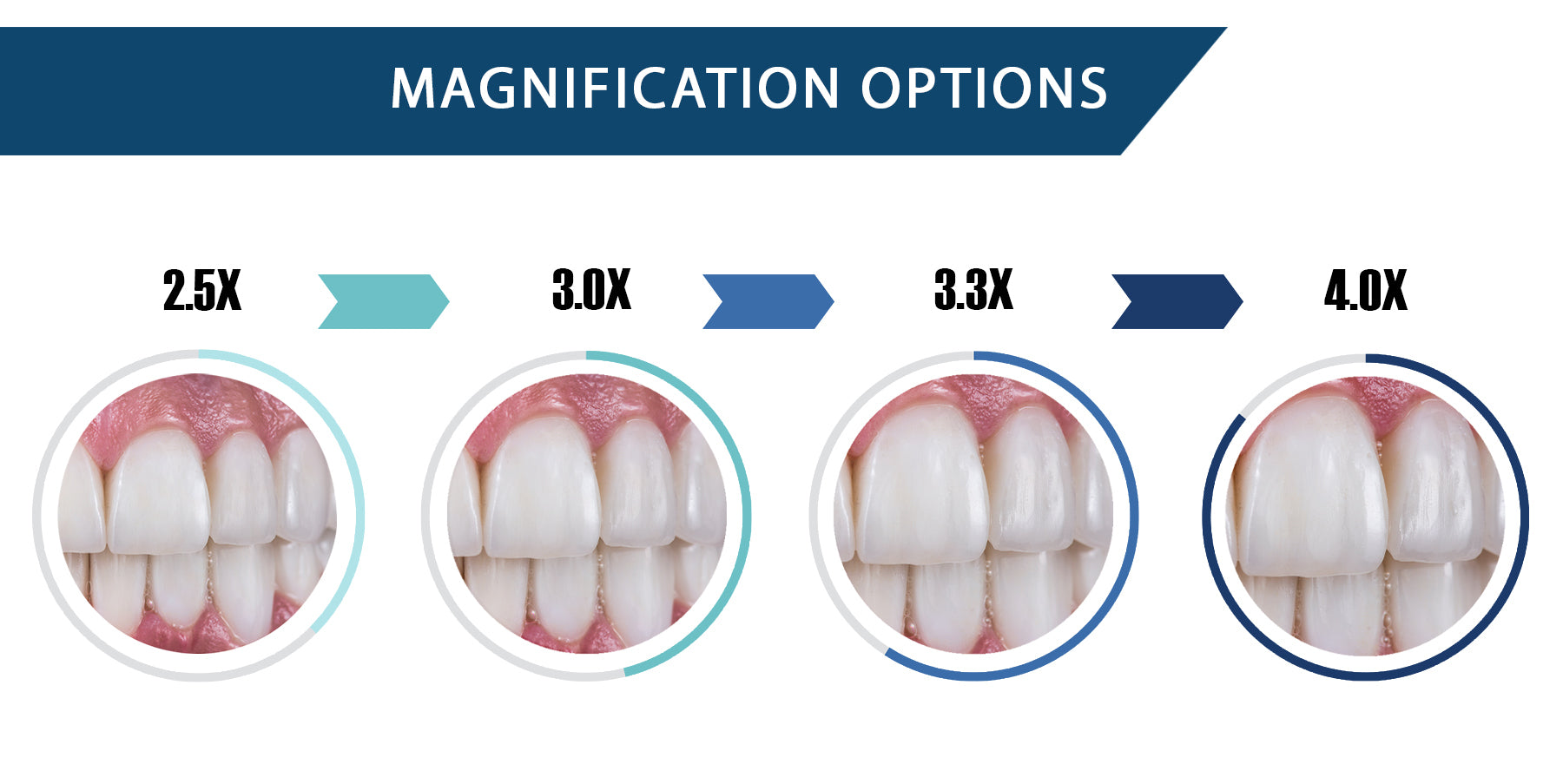

Magnification Levels

Choose the appropriate magnification level based on your specific needs:
TTL Loupes Magnification Options

2.5x Galilean: Ideal for most first-time users and general use

3.3x Galilean: Ideal for practitioners accustomed to wearing loupes who require increased magnification.
Flip-Up Loupes Magnification Options

3.3x: Only magnification is available for the Flip-Up Loupes. However, these loupes allow you to adjust the pupillary distance, making them suitable for sharing among multiple users. They are available in three working distances: 37 cm, 42 cm, and 47 cm.
Angled Loupes Magnification Options

Our products are manufactured both locally and globally. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.

Step 2

Loupe Measurements:

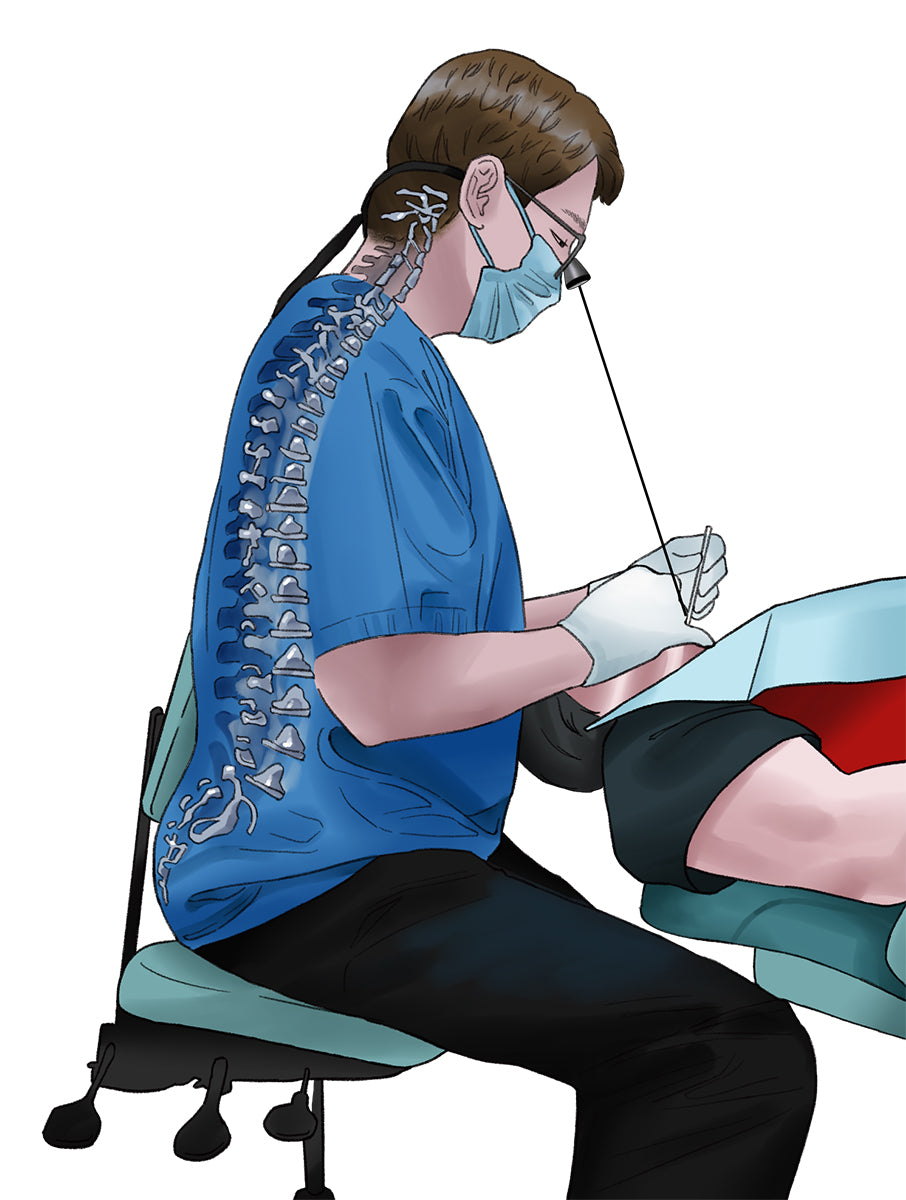

Working Distance diagram

Loupe Working Distance (WD) Measurement

To ensure proper focus alignment, measure your working distance using the following method:

For angled loupes:

  • The person being measured should be sitting upright, looking straight ahead. This ensures proper alignment for accurate measurement.

For TTL loupes & flip-up loupes:

  • The person being measured should be sitting upright with the neck slightly angled down throughout the measurement process.

Tape Measurement: The assistant should use a flexible tape measure to measure the distance between the corner of one eye and the patient's teeth.

Perform multiple measurements to ensure accuracy, accounting for any slight variations.
Woman measuring PD

Professional Measurement:

  1. Visit any local optician or eyewear retailer equipped with a pupilometer.
  2. Request a PD measurement taken at "infinity" (distance) for precise fitting.
  3. Inform the optician of your need for PD measurement for surgical or dental loupes.

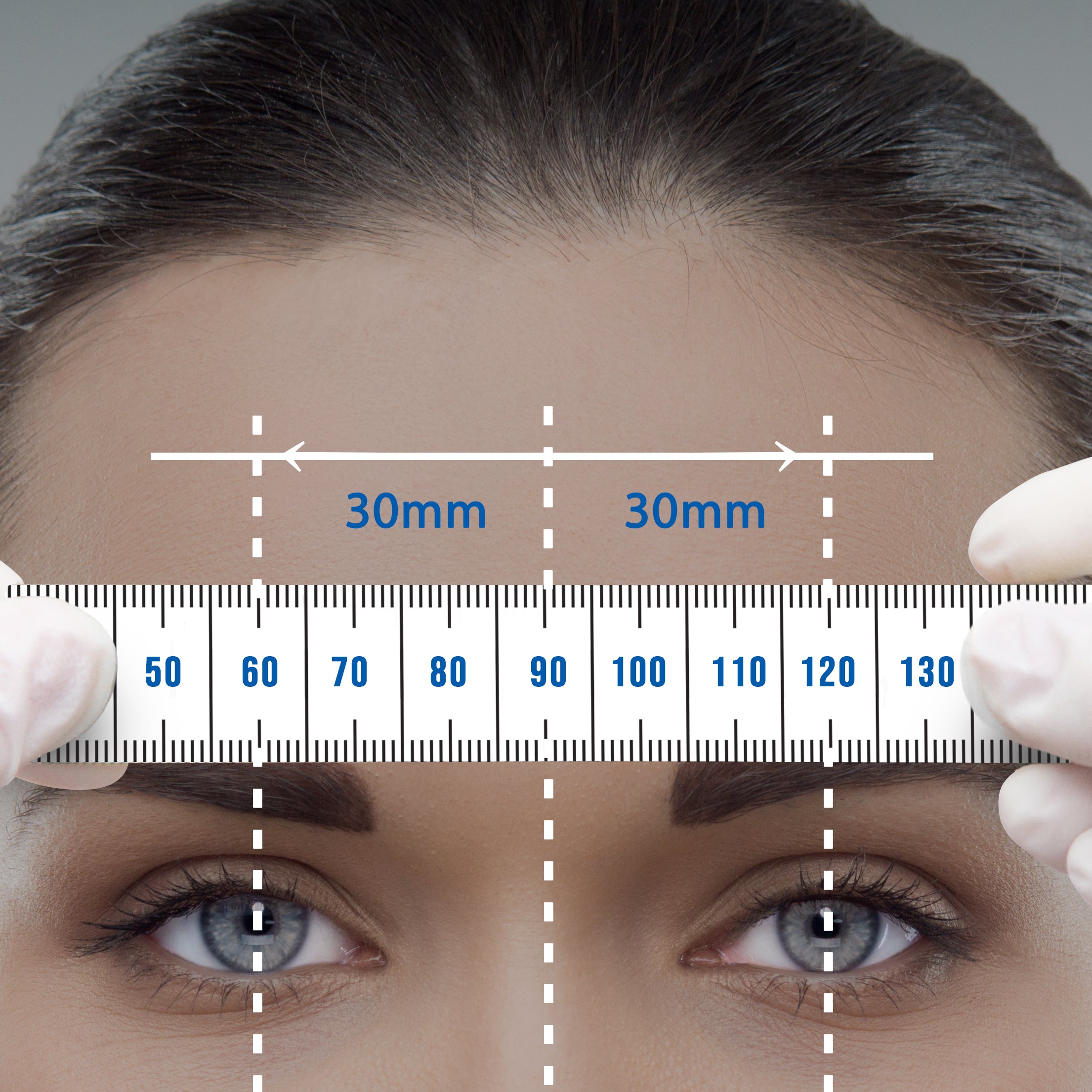

Single and Dual PD Measurements

Self-Measurement:

  1. If unable to visit an optician, you can measure your PD at home with the help of a friend or family member.
  2. Stand approximately 4 feet away from the person assisting you.
  3. Hold a ruler horizontally across your nose.
  4. Have your assistant take a picture directly in front of you with the flash on.
  5. Perform multiple measurements for accuracy and take the average.

Ensuring an accurate PD measurement will contribute to the optimal performance and comfort of your customized TTL loupes.
Hand holding a lens against a dark background

Self-Measurement:

  1. If unable to visit an optician, you can measure your PD at home with the help of a friend or family member.
  2. Stand approximately 4 feet away from the person assisting you.
  3. Hold a ruler horizontally across your nose.
  4. Have your assistant take a picture directly in front of you with the flash on.
  5. Perform multiple measurements for accuracy and take the average.

Ensuring an accurate PD measurement will contribute to the optimal performance and comfort of your customized TTL loupes.

Step 3

Ordering

Once you place your order, we will promptly forward all the necessary information to the manufacturer. This includes your precise working distance and pupillary distance measurements, as well as your selected types of loupes and magnification preferences. This ensures that the manufacturing process is customized to meet your specific requirements for optimal performance and comfort.
Person working at a desk with a laptop, notebook, and calculator.

Step 4

Production

ILLUCO will commence the manufacturing process for your custom loupes by precisely incorporating your unique pupillary distance and optimal working distance measurements. This personalized approach ensures that your loupes are tailored to provide maximum comfort, enhanced ergonomics, and superior visual clarity, perfectly suited to your individual needs and professional requirements.

Step 5

Delivery

Upon completion of your custom loupes by the manufacturer, we will ensure your order is promptly shipped directly to the delivery address specified in your order. Enjoy the exceptional comfort and clarity of your new, custom-made loupes!
From the moment you receive them, you'll have loupes crafted exclusively for you.
doctor wearing ILLUCO galilean 3.0x loupes

Talk to a Specialist

If you have any questions about our products or need guidance in finding the right solution, please fill out the form. Our specialists are ready to provide expert support tailored to your needs.

Contact Us

+1 (562) 927-8025

+1 (657) 213-4343

info@illuco.com
What is ILLUCO's warranty on loupes and headlights?

We stand behind the precision and durability of every ILLUCO device, because your tools should perform as consistently as you do.

Loupes
Oculars: 3-year warranty
Frames: 2-year warranty

Headlights
Unit: 2-year warranty
Batteries: 1-year warranty

If anything isn’t performing as expected, our team will work with you to get it resolved quickly.

Need support? Our team is here to help with fast diagnostics and service.
Why are my loupes blurry?

Blurry vision usually comes down to a quick fix, not a defect. Here are the most common causes:

1. Alignment or Fit
If your loupes aren’t properly aligned to your eyes, clarity can drop instantly. Even slight shifts in positioning can affect your field of view.

2. Working Distance Mismatch
If your posture or working position has changed, your preset working distance may no longer match how you’re using them.

3. Prescription Compatibility
If you wear corrective lenses, your loupes may need fine-tuning to work seamlessly with your prescription.

What to do next:
We recommend a quick adjustment session with our team—we can usually resolve this fast and get your clarity back to optimal.

Contact us for a fitting check or adjustment guidance.
Can the working distance be adjusted later?

Your working distance is custom-set during production to match your posture and workflow for optimal ergonomics and clarity.

Because of this, it isn’t adjustable on the fly, but we’ve got you covered if your needs change.

  • Adjustment service available: $120
  • Requires sending the loupes in for recalibration
  • Turnaround includes full re-optimization and return shipping

This ensures your loupes continue to deliver the same precision and comfort they were designed for.

Not sure what your ideal working distance is? We can help you dial it in before you order.
Can I use loupes if I have an eye condition (e.g. strabismus)?

Loupes rely on precise binocular alignment, meaning both eyes must work together to create a single, clear, magnified image. Certain eye conditions can interfere with this process and may impact performance. Some conditions that may affect loupe compatibility include:

  • Strabismus (eye misalignment) – can make it difficult to merge the two optical images into one
  • Amblyopia (lazy eye) – reduced vision in one eye can limit depth perception and clarity
  • Severe astigmatism or high refractive error – may exceed optical customization limits
  • Diplopia (double vision) – can be intensified when using magnification systems
  • Binocular vision disorders – issues with eye coordination or tracking

Because of these factors, standard loupe configurations may not deliver optimal clarity or comfort for individuals with these conditions. That said, every case is different.

We recommend consulting with your optometrist or ophthalmologist first, then connecting with our team. We’re happy to review your situation and help determine the best path forward.
Do you have a limitation on prescription (Rx) lenses?

Yes - prescription ranges must fall within a certain threshold to maintain optical clarity and performance.

  • Combined SPH + CYL range: within +10 to -10

This ensures your loupes deliver sharp, distortion-free magnification without compromising comfort or accuracy.

If your prescription falls near or outside this range, our team can help review your options and recommend the best solution.

Send us your Rx and we’ll guide you through the best setup.
