For years, 2.5x and 3.5x magnification was dominant in the loupes conversation. They have enough magnification to see clearly, enough field of view to stay oriented. But the dental industry is shifting, and the numbers tell the story plainly: the global dental loupe market is projected to grow from $325 million in 2025 to over $554 million by 2034, fueled in large part by demand for higher magnification and more precise optics.
One of the sharpest questions facing clinicians today is this: when does higher magnification stop being overkill, and start being essential? As minimally invasive procedures become the expectation and patient outcomes are scrutinized at a finer level than ever, 5.5x loupes are moving from specialist territory into mainstream clinical practice.
Why Clinicians Are Pushing Magnification Higher
The shift toward high magnification isn't a trend, but a clinical response. A peer-reviewed update published on PubMed found that loupe magnification produces "significantly increased detection and diagnostic abilities due to enhanced visibility," with postural studies showing improved upper-body positioning compared to the naked eye. Those findings were based largely on 2.5x–5.0x ranges. The next frontier is above 5x.
A systematic review in PMC evaluating magnification across 1,851 dental specimens found that loupes meaningfully improve operator working posture and visual acuity during cavity preparation, and that procedure time actually decreases with magnification. One study recorded preparation times of 430 seconds without loupes versus 394 seconds with 2.5x magnification. Now imagine that efficiency gain compounded at 5.5x, where detail resolution is dramatically sharper.
|
9.47% |
8.5% |
$554M |
<394s |
Research published on PubMed examining high-magnification loupes during extractions concluded that greater magnification improves a dentist's ability to distinguish between tooth structure and alveolar bone, facilitate more conservative removal of alveolar bone, and detect tooth particle perimeters during luxation. These are not marginal gains. They are the difference between a conservative, tissue-preserving outcome and an unnecessarily aggressive one.
"Dentistry is a visually and physically demanding profession with a high prevalence of musculoskeletal disorders. Loupe magnification potentially benefits both the dental healthcare provider and patients."
— PubMed Review, Dental Magnification Loupes: An Update of the Evidence
The 3 Metrics That Actually Matter at 5.5x
When evaluating any high-magnification loupe, three numbers define the clinical experience more than magnification power alone. Clinicians who focus only on the "x" miss what truly separates a useful loupe from a frustrating one.
1. Field of View (FOV)
Higher magnification compresses your field of view. A loupe with a large FOV at 5.5x is genuinely difficult to engineer — most competitors sacrifice width for power. FOV determines how much of the oral cavity you can survey without repositioning. For crown prep, periodontal surgery, or endodontic access, a wider FOV means fewer interruptions and better spatial awareness. ILLUCO's in-depth guide on FOV and DOF covers exactly why this trade-off matters and how prismatic optics address it.
2. Depth of Field (DOF)
DOF is how far you can move toward or away from your working surface before the image blurs. A large depth of field forgives minor postural variations — essential for long procedures. It also reduces the micro-adjustments that accumulate into neck and shoulder strain over a full clinical day. At 5.5x magnification, DOF is typically the first casualty in budget optics. Premium prismatic loupes maintain a clinically useful DOF even at high magnification.
3. Weight
A loupe you won't wear is a loupe that doesn't help you. Weight becomes a silent enemy over an eight-hour schedule. Heavier loupes create a lever arm on the nose bridge, forcing your neck and trapezius muscles to compensate — and that compensation accumulates into the exact musculoskeletal patterns that loupes are supposed to prevent. Every gram matters. This is why ILLUCO's previous blogs on TTL vs. Flip-Up vs. Angled loupes and on choosing the right magnification keep returning to the same theme: ergonomics isn't a feature, it's the frame the entire experience is built around.

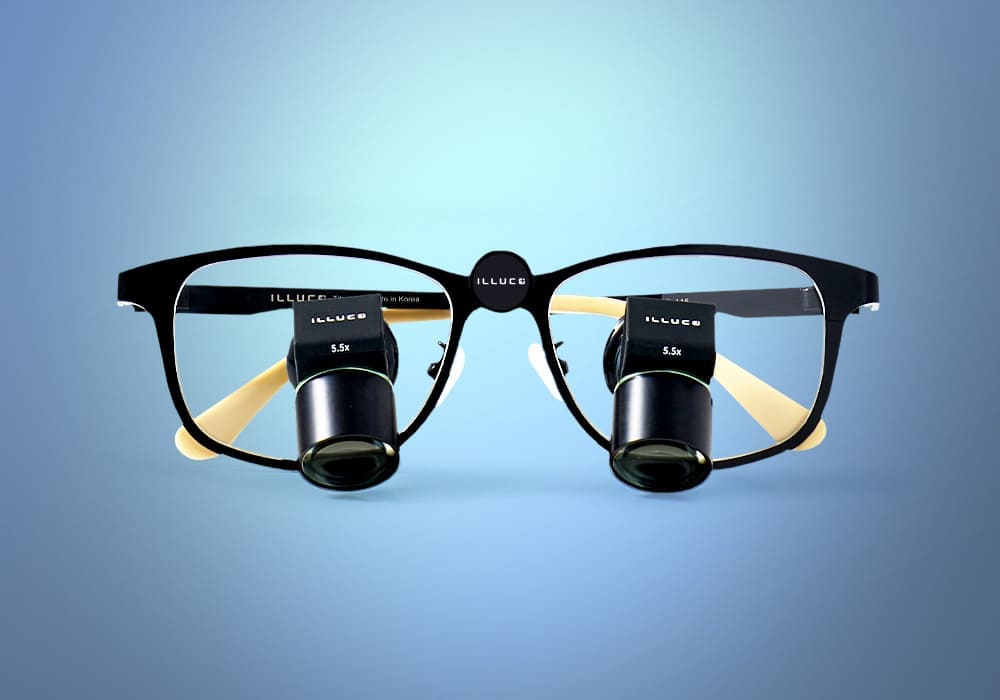

Introducing the ILLUCO Ergo X 5.5x - Debuting at CDA 2026
ILLUCO has been recognized with the Red Dot Award for innovation and design, and our newest instrument is one of the most technically ambitious loupes we've ever built. The Ergo X 5.5x was engineered to answer the question clinicians keep asking: can you have 5.5x magnification without sacrificing the FOV, DOF, and comfort that make loupes actually usable across a full day?
ILLUCO Ergo X 5.5x - Full Specifications
|
5.5x |
7.5 |
7 |
|
45-55 |
40 |
61g |
What makes these numbers notable is the combination. A 7.5 FOV at 5.5x magnification is exceptional, because most loupes at this power sacrifice width substantially. A depth of field of 7 gives clinicians enough vertical flexibility to maintain focus through natural body micro-movements. The working distance range accommodates a range of body types and chair setups, ensuring the loupe can be custom-fitted to support a neutral, ergonomic posture.
And at 61 grams without frame, the Ergo X 5.5x is engineered for an eight-hour day, not just a demonstration.
Who Should Consider 5.5x Magnification?
Not every clinician needs 5.5x, and we'd rather give you an honest answer than oversell power for power's sake. Here's how we think about it:
5.5x is ideal if you regularly perform:
- endodontic procedures (canal location, broken instrument retrieval)
- fine periodontal surgery
- anterior composite placement requiring shade blending precision
- crown and bridge preparation where margin integrity is paramount
- implant-adjacent procedures where tissue architecture is critical
5.5x is less suited for: high-volume, rapid-movement hygiene appointments, orthodontic banding, or any workflow where spatial overview is prioritized over micro-detail. In those scenarios, 2.5x or 3.5x loupes from ILLUCO's collection remain the right tool.
The ILLUCO magnification comparison guide walks through these trade-offs in detail - including how FOV, DOF, and weight interact across the 2.5x - 6.5x spectrum. For students mapping out their first purchase, the Beginner's Guide to Surgical and Dental Loupes is a strong starting point
The Market Context: Why 2026 Is the Tipping Point
Market data from multiple research groups underscores why now is the moment for high-magnification loupes to cross into mainstream adoption. Market Research Future notes that the 4.0x - 6.0x magnification segment is the fastest-growing category within the surgical loupes market, even as 2.5x-3.5x remains the largest segment by volume. The growth is being driven by three converging forces:
Precision dentistry demands: As a 2026 industry review noted, "digital dentistry has increased expectations for accuracy at higher magnifications." Clinicians are expected to deliver outcomes that match the precision their digital planning tools promise.
Practitioner health awareness: Market Research Future estimates that ergonomic features could account for nearly 30% of total surgical loupe sales by 2026. Musculoskeletal disorders remain the leading occupational health concern in dentistry.
Optical engineering maturity: Prismatic loupes now deliver sharper resolution across the entire field of view and improved depth of field without the weight penalties that once characterized high-magnification systems.
Ready to See the Difference?
The ILLUCO Ergo X 5.5x will be available for hands-on evaluation at CDA Presents 2026 in Anaheim, May 14 - 16. If you can't make it to Anaheim, ILLUCO's Try Before You Buy program lets you evaluate certain loupes in your actual clinical environment - no trade show required.
Shop Loupes Collection | CDA 2026 Info
