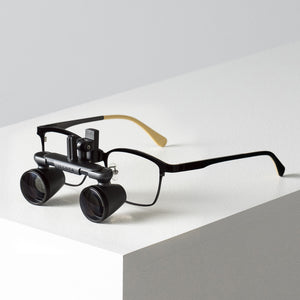

Flip-Up Galilean Classic Black
3.0x Flip-Up Loupes

3.0x Flip-Up Loupes

$635.00

Detail When You Need It. Flexibility Throughout Your Day.
Move between magnified work and natural vision without removing your frames.
Frame Style: Classic
Color: Black
Working Distance: 37cm (14.5")

Upgrade Your Experience
3.0x Flip-Up Loupes
$635.00
$635.00
Frame Style: Classic
Color: Black
Working Distance: 37cm (14.5")
Flip-Up Galilean Classic Black
3.0x Flip-Up Loupes
$635.00
Description

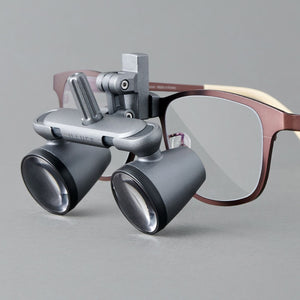

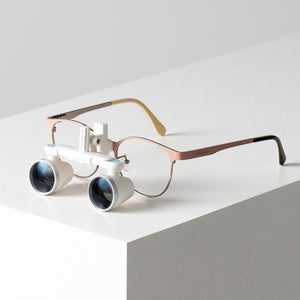

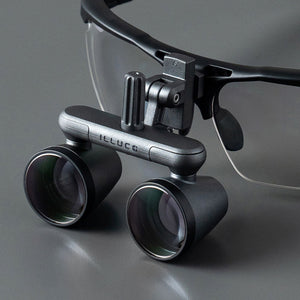

ILLUCO Flip-Up Loupes pair 3.0x Galilean magnification with a double-hinge design that lifts the optics out of your line of sight. Choose your frame and working distance, then adjust the pupillary spacing to align your view.

Adjustable PD (mm): 54-76
Key Benefits

Seamless Visual Transitions: Double-hinge mechanism allows optics to be quickly flipped up out of the line of sight, enabling immediate eye contact with patients or screen navigation without removing the frame.

Independent Interpupillary Adjustment: Dual precision dials allow independent left and right pupillary distance (PD) calibration, ensuring accurate optical symmetry and reducing eye strain.

Customizable Declination & Working Distance: Adjustable hinge declination and multiple working distance configurations (37 cm, 42 cm, or 47 cm) help maintain ergonomic neck and back positioning across diverse procedural postures.

Laser-Aligned High-Definition Optics: Advanced Broadband Anti-Reflection (BBAR) optical coatings deliver crisp edge-to-edge resolution, exceptional color fidelity, and extended depth of field.

Multi-User & Prescription Versatility: Adjustable mounting architecture allows loupes to be easily shared between practitioners or fitted over removable prescription frame inserts.

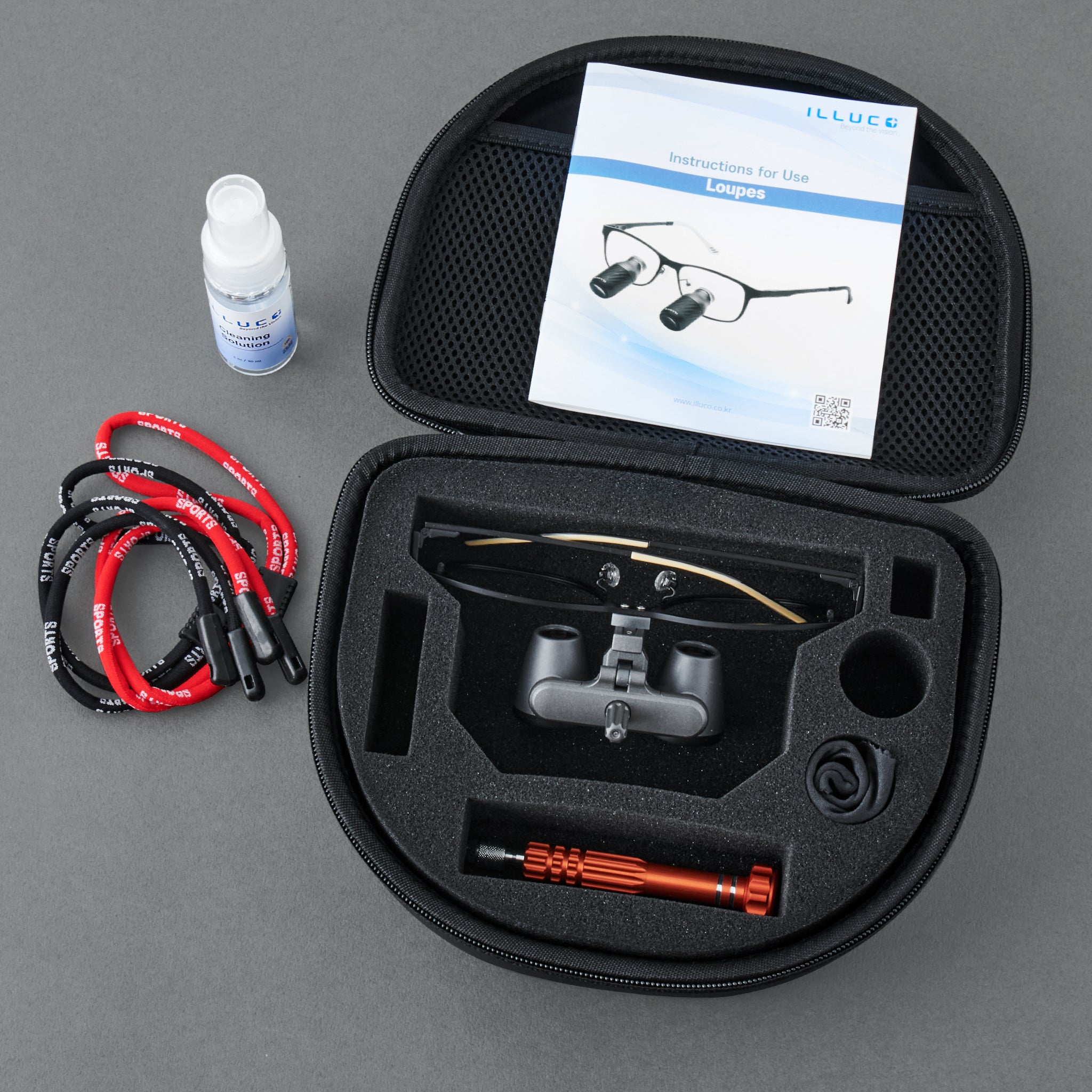

What's Included
  • 1x ILLUCO Flip-Up Loupes (IFL Series)

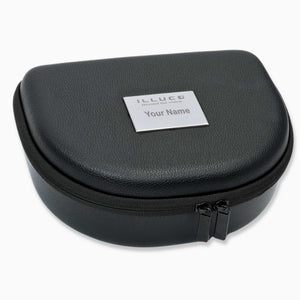

  • 1x Protective Leather Carrying Case
  • 1x Microfiber Cleaning Cloth & Solution
  • 2x Adjustable Head Straps
  • 1x Removable Side Shields
  • 1x Frame Adjustment Screwdriver & Extra Screws
  • x1 paddle & magnetic attachment

A Closer Look. An Easy Transition.


Your day moves between detailed work, patient conversations, and everything in between. A flip-up design lets your view change with the task.

  • Flip Up and Reconnect

    Lift the optics out of view for tasks that don’t require magnification.

  • Adjust Your View

    Adjust the pupillary spacing to bring the optics into alignment with your eyes.

  • Choose Your Distance

    Select the focal distance that suits your eyes and your working area.

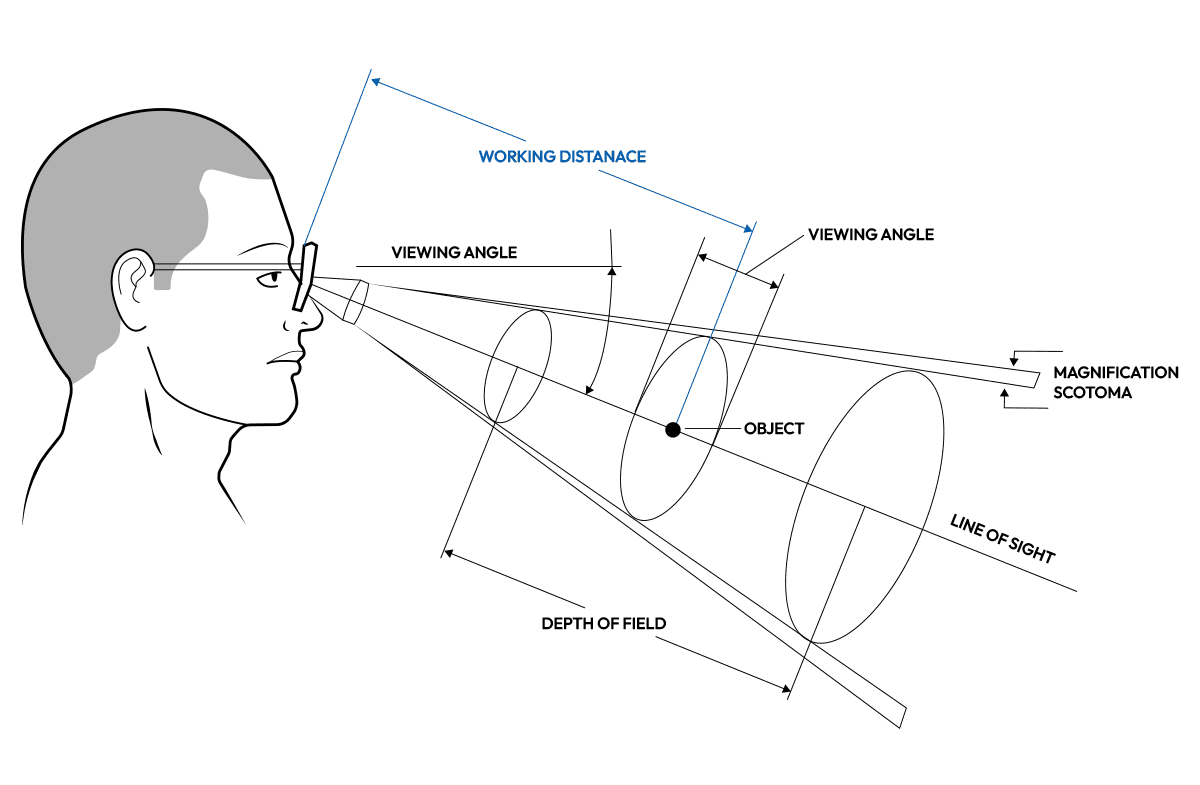

Find your Working Distance

Working distance is the distance from the bridge of your nose to the area where you perform detailed work. Measuring in your usual working position helps you choose an option that suits your setup.

You’ll need: A measuring tape, another person, and a target positioned where you normally work.

Need Help Measuring?

Our team can guide you through the process and help confirm your selection.

 Get Fitting Help

  • Get Into Position

    Sit or stand comfortably with relaxed shoulders, elbows close, and arms bent around 90°.

  • Look at Your Target

    For Flip-Up loupes, gently tilt your head down without leaning forward.

  • Measure With Help

    Hold your position while someone measures from the bridge of your nose to your target.

  • 37 cm / 14.6 inches
    Closer working distance

  • 42 cm / 16.5 inches
    Medium working distance

  • 47 cm / 18.5 inches
    Longer working distance.

Complete your setup

Choose an optional headlight and prescription lenses to accompany your custom loupes.

Choose your headlight
Before discounts, shipping and taxes. One of each selected accessory per pair of loupes.

Specifications

Model
IFL-1030G
Style
Flip-Up
Magnification
3.0x
Field of view (cm, at 45 cm)
11
Depth of field (cm)
15
Working distance (cm)
37, 42, 47
Resolution (lp/mm)
13
Weight without frame (g)
48

Frequently Asked Questions

How are Flip-Up Loupes different from TTL loupes?

Flip-Up Loupes mount the optics in front of the frame, allowing you to lift them out of your line of sight. TTL loupes have optics fixed through the frame lenses.

What magnification is available?

These Flip-Up Loupes offer 3.0x Galilean magnification. The magnification stays the same regardless of your frame or working-distance selection.

How do I choose my working distance for Flip-Up loupes?

Working distance is the distance between your eyes and the area you’re viewing while working. Choose from 37, 42, or 47 cm based on your usual working position. If you’re unsure, our team can help you select an option.

Can I adjust the pupillary distance myself?

Yes. The optics have adjustable pupillary spacing from 54-76 mm to help align them with your eyes. Follow the fitting instructions, and contact our team if you need assistance achieving a single, clear view.

Can I use Flip-Up Loupes with a prescription?

Prescription options depend on your selected frame and visual requirements. Contact our team before ordering to confirm the appropriate prescription setup.

Can I add a headlight to Flip-Up loupes?

Contact our team to confirm which headlight and mounting attachment work with your selected Flip-Up configuration. Confirm compatibility before purchasing a light or adapter separately.

Do I need to remove the loupes for conversations or other tasks?

No. You can raise the optics out of your line of sight while keeping the frames on, making it easier to move between magnified work and tasks that don’t require magnification.

How should I clean and care for my loupes?

Follow the supplied care instructions and use cleaning products approved for the lenses and frame. Store your loupes in their protective case when not in use, and move the flip-up mechanism gently without forcing it beyond its normal range.
