IDS-3100
IDS-3100 Woods Lamp

IDS-3100 Woods Lamp

$850.00

Explore Beyond White Light.
Take a closer look with 10x magnification and versatile illumination. Switch between cross polarization, parallel polarization, and UV modes to explore skin detail and fluorescence from complementary perspectives.
IDS-3100
IDS-3100 Woods Lamp
$850.00
Description

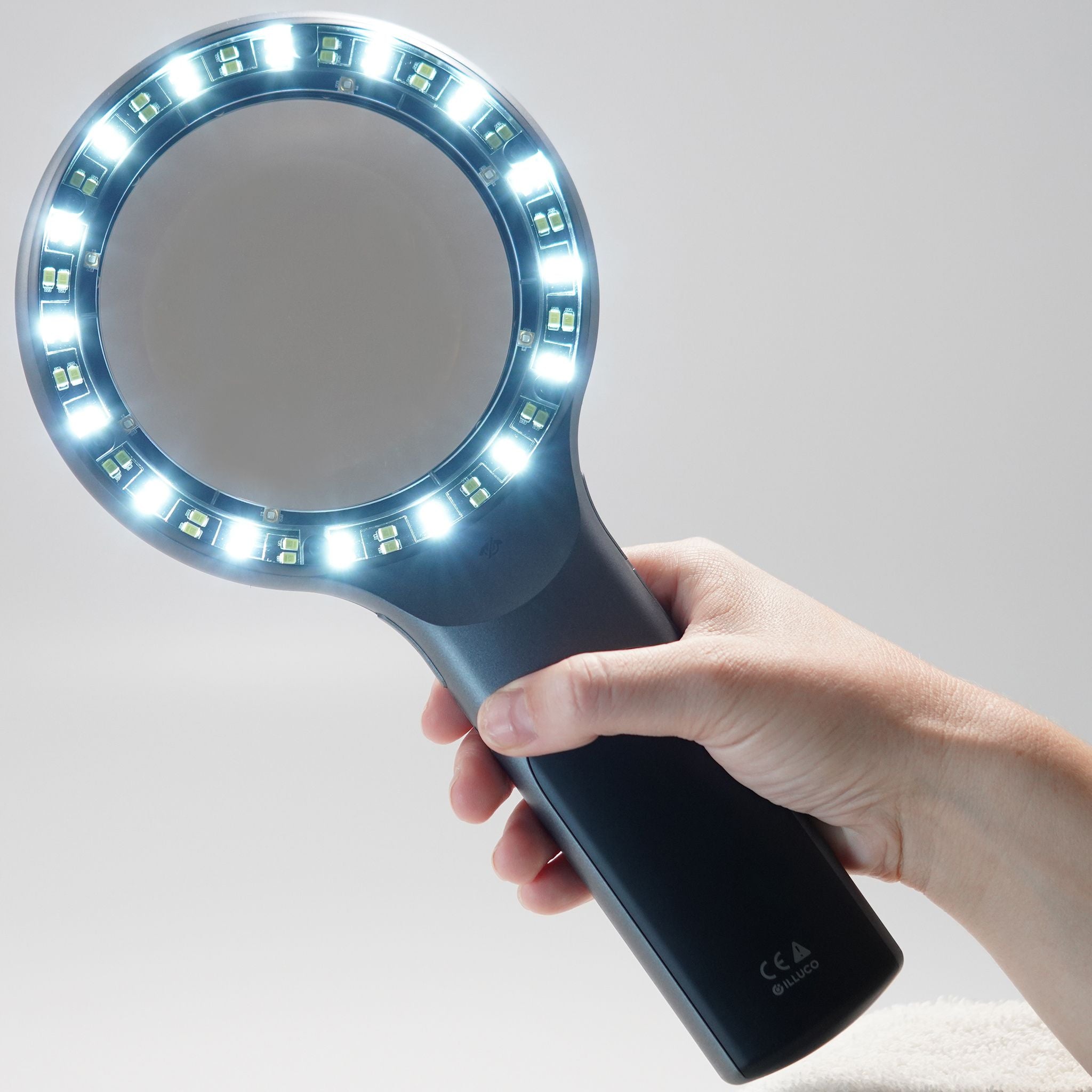

The IDS-3100 is designed for clinicians who require diagnostic visualization beyond visible light. Powered by a high-density 70-LED illumination array (64 white LEDs and 6 UV LEDs), the device features an engineered aspherical lens system that minimizes peripheral optical distortion, delivering a clean 10x magnification across an 18mm field of view.

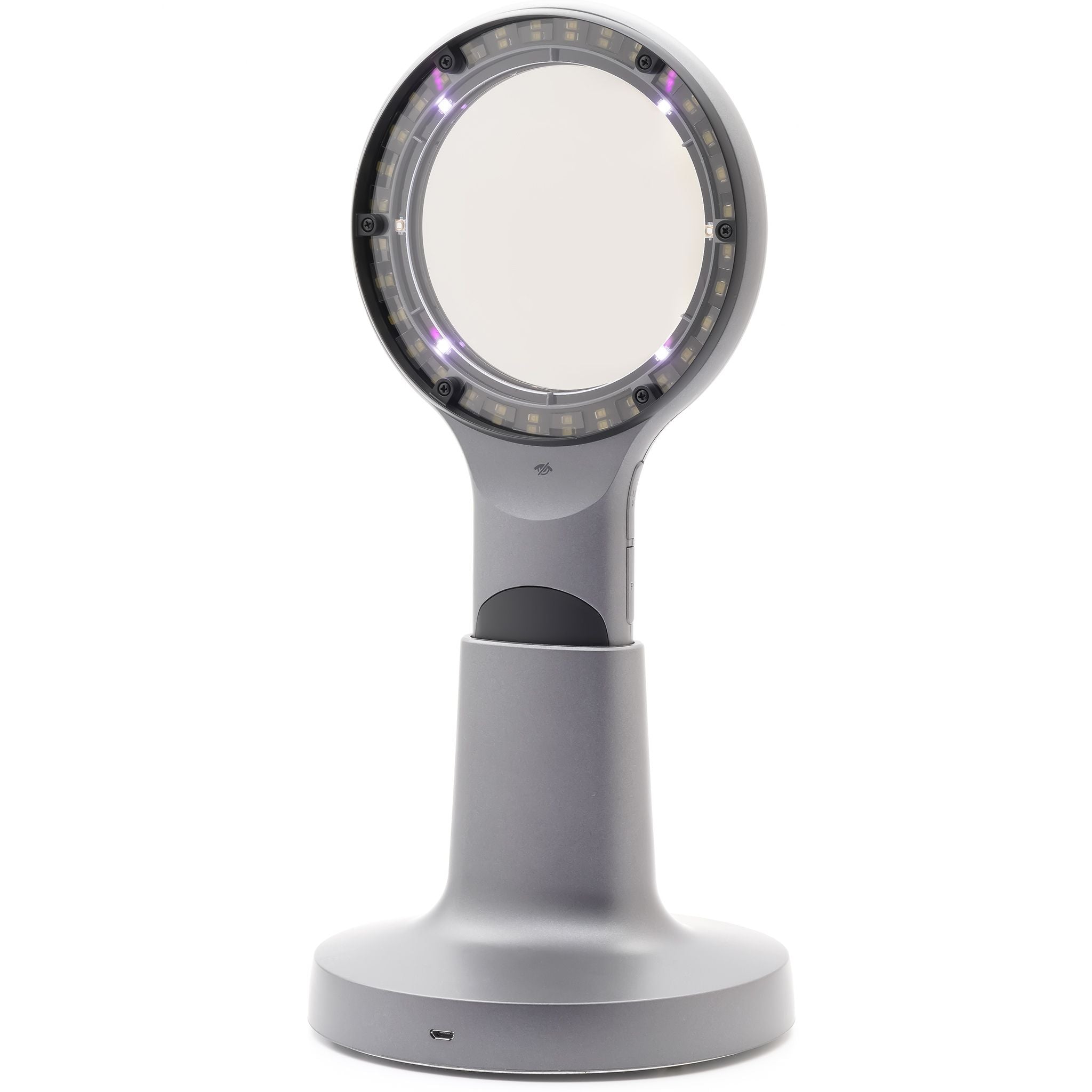

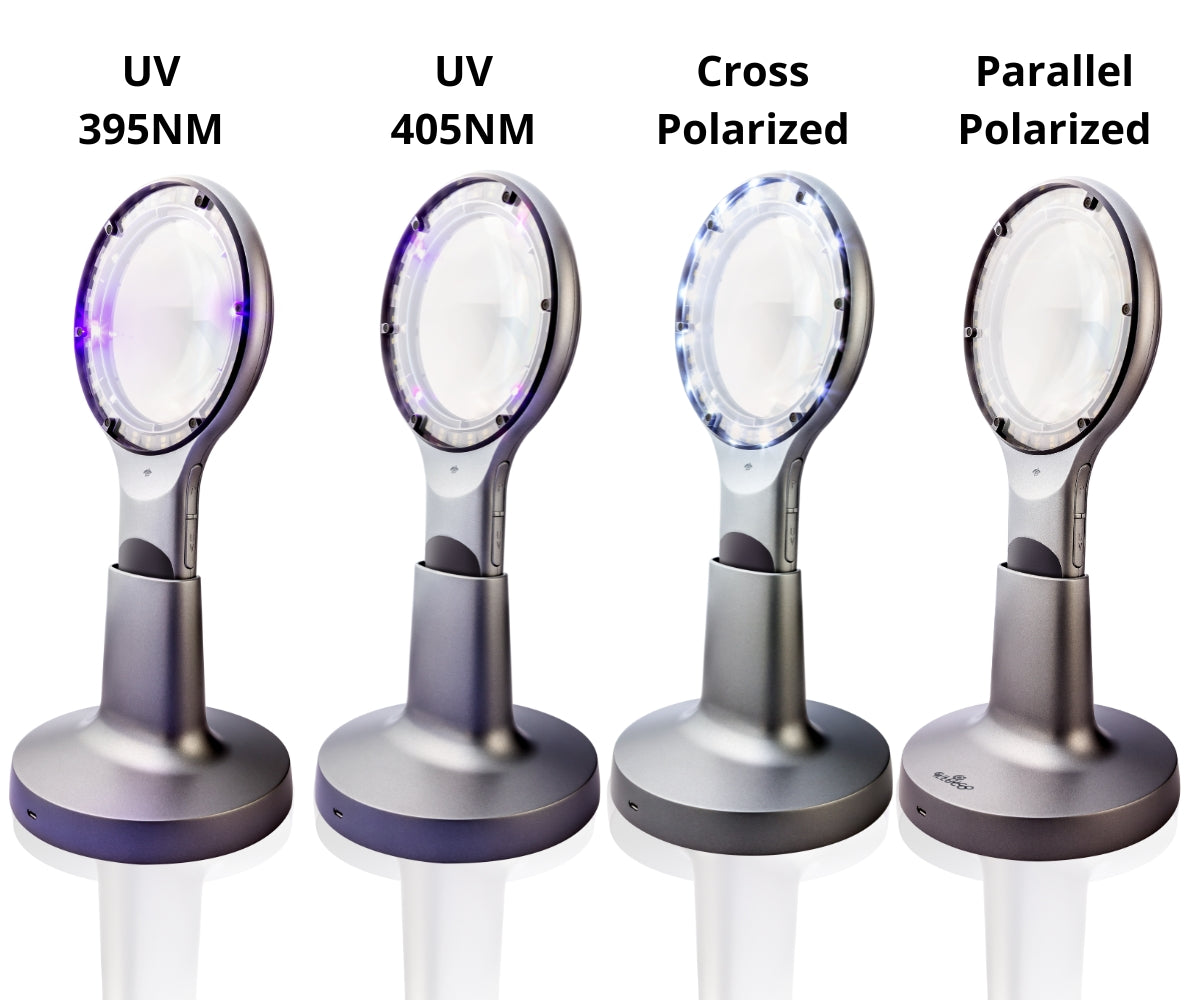

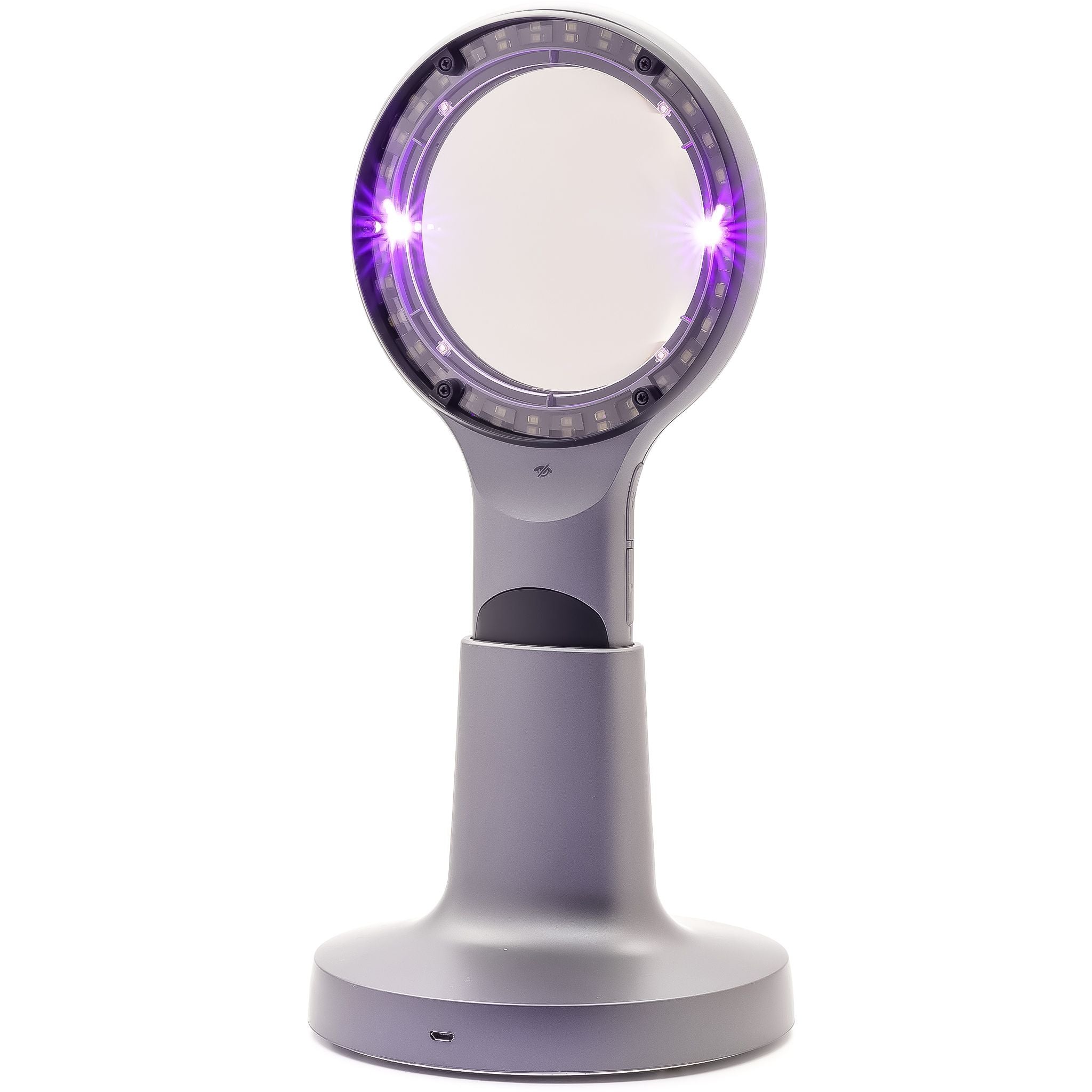

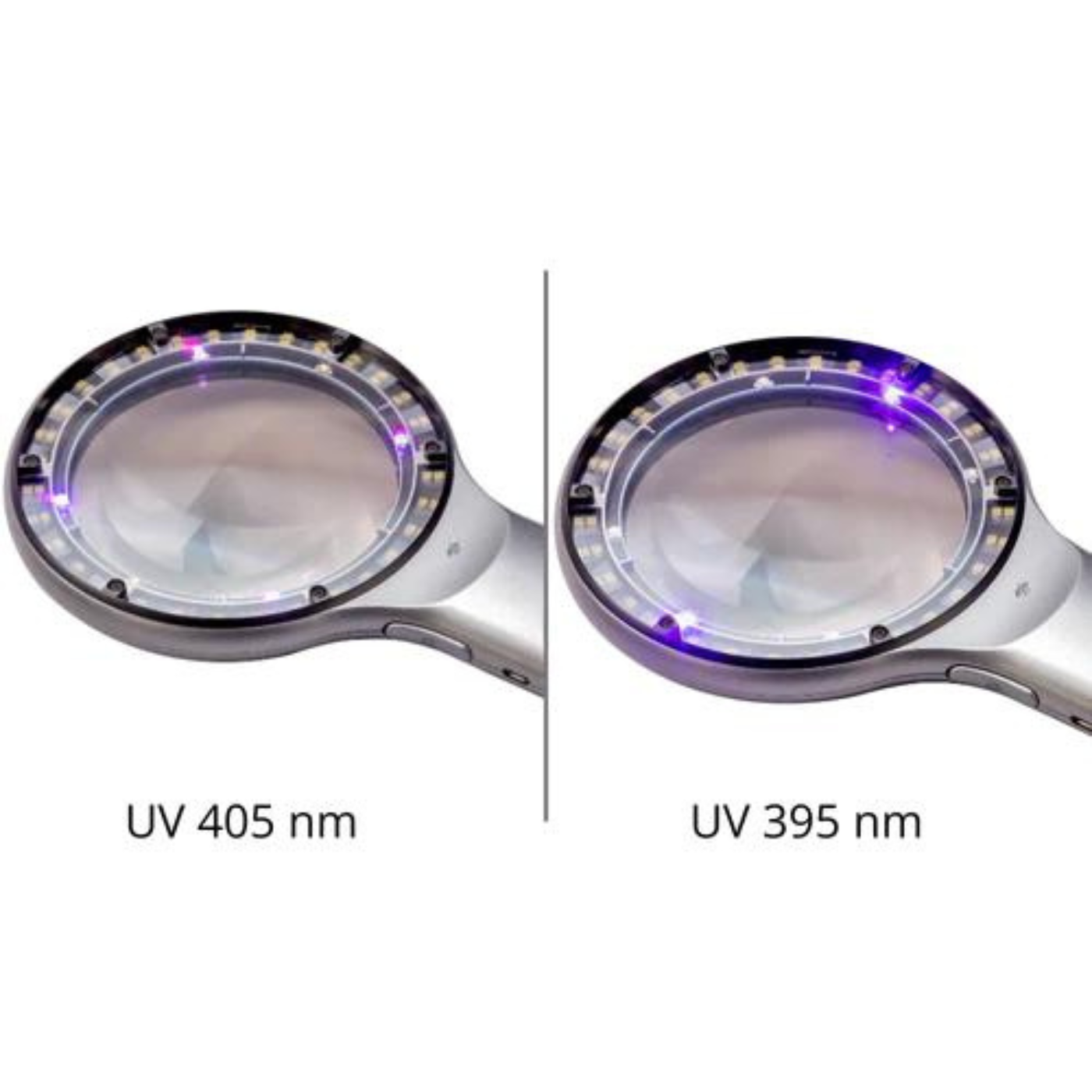

The Woods Lamp allows practitioners to toggle between Cross-Polarization, Parallel-Polarization, and targeted UV illumination modes (365 nm, 405 nm, and combined 395+405 nm). This multi-spectral versatility enables precise detection of superficial skin conditions, subsurface dyschromia, and bacterial or fungal fluorescence without requiring darkroom conditions.
Key Benefits

Multi-Spectral Diagnostic Capability: Combines dual-mode polarization (Cross & Parallel) with three targeted UV wavelength modes (365 nm, 405 nm, 395+405 nm) for comprehensive dermatological and fluorescing evaluations.

Enhanced Subsurface & Infectious Visualization: Ideal for evaluating bacterial infections (P. acnes), fungal dermatoses (Tinea, Malassezia), pigmentary disorders (melasma, vitiligo), and superficial vascular structures.

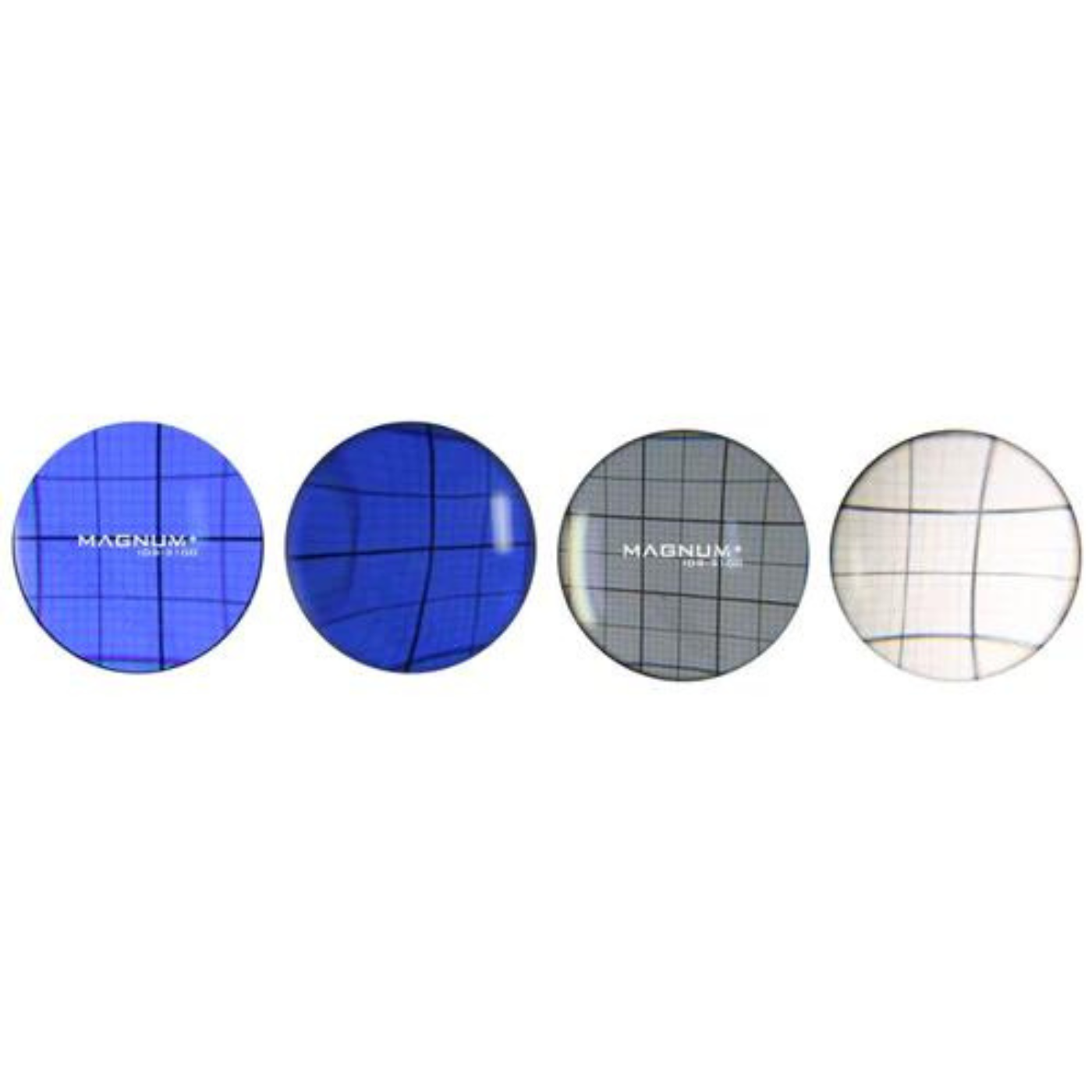

Aspherical Optical Precision: Features precision-ground aspherical optics to eliminate edge distortion, ensuring uniform edge-to-edge clarity and true-to-life tissue presentation.

Seamless Clinical Workflow: Equipped with a desktop charging cradle for instant dock-and-go accessibility and high-capacity 3,400 mAh battery performance for uninterrupted daily patient exams.

Teledermatology Ready: Smartphone compatible for quick, high-resolution photo documentation and digital patient record integration.
What's Included
  • IDS-3100 Wood's Lamp Dermatoscope
  • Desktop Charging Cradle
  • 5-Pin USB Charging Cable
  • Optical Lens Cleaning Cloth
  • Protective Leather Pouch

Explore Beyond White Light.

Expand your view with cross-polarized, parallel-polarized, and UV illumination in one handheld device. The IDS-3100 combines 10x magnification with an aspherical lens system designed to reduce peripheral distortion, helping keep detail clear across the viewing area. Switch between polarized white light and fluorescence observation to explore complementary views of the same skin area.

  • Detail in View

    Examine skin with 10x magnification and aspherical optics designed to reduce peripheral distortion.

  • Beyond White Light

    Switch between cross polarization, parallel polarization, and UV illumination for complementary perspectives.

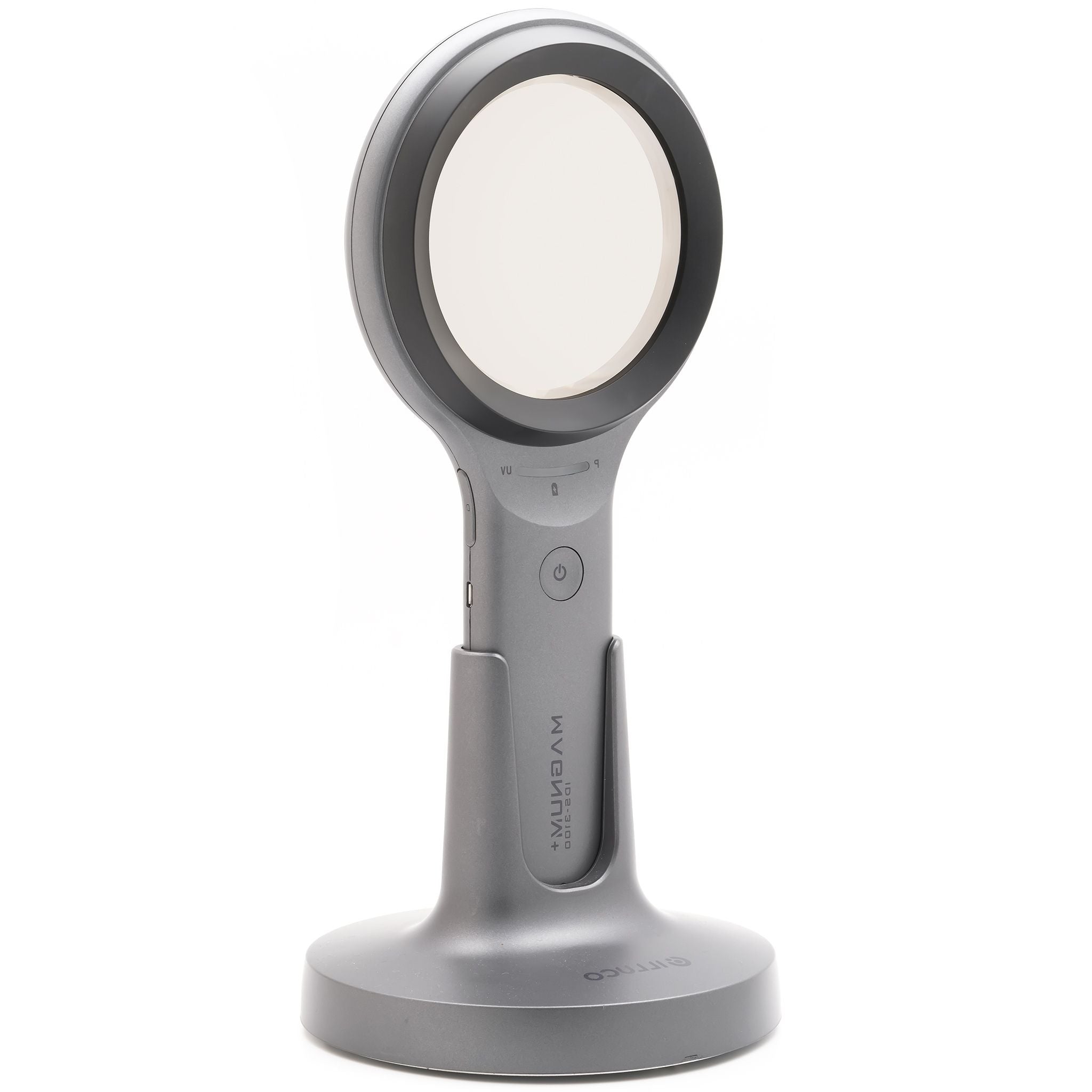

  • Dock and Recharge

    Recharge between examinations with the included desktop cradle and a 3,400 mAh battery.


Clinical Images in Focus

Non-polarized IDS-3100 image of facial acne, showing redness and raised spots across the cheek and chin

IDS-3100 - Acne · Non-Polarized

View the acne-affected cheek and chin under non-polarized illumination, showing raised spots, surface texture, and visible redness. This image provides an overview of how these features are distributed across the facial area. It serves as a reference for comparison with the corresponding polarized view.

Polarized IDS-3100 image of the same acne-affected cheek and chin, showing variations in redness

IDS-3100 - Acne · Polarized

Explore the same acne-affected area under polarized illumination, with visible differences in the appearance of redness and skin coloration. The image offers a complementary view of individual spots and the surrounding skin across the cheek and chin. Compare it with the non-polarized image to see how the lighting setting changes the presentation of these features.

Polarized IDS-3100 view of a documented skin cancer lesion above the upper lip

Lesion Detail Under Polarized Light

View the documented skin cancer lesion under polarized illumination, showing its surface appearance and surrounding skin.

UV IDS-3100 view of the same lesion above the upper lip, showing areas of contrasting fluorescence

IDS-3100 - Skin Cancer · UV

View the same lesion above the upper lip under UV illumination, showing contrasting areas of fluorescence across the examination site. Compared with the polarized image, this view presents a different distribution of visible colors and brightness across the lesion and surrounding skin. The comparison demonstrates changes in appearance under illumination, rather than changes over time.

Specifications

Model
IDS-3100
Polarization
Cross & Parallel & UV
Field of view
100 mm
Magnification
2.5x
Brightness control
3 levels
Smartphone adapter
n/a
LED illumination
64 white LEDs / 6 UV LEDs
Battery
Rechargeable lithium-ion 3,400mAh / 3.7V
Charging time
8.5 hours
Continuous operating time
2.5 ~ 4 hours
Charging method
USB 5pin / Charging Cradle
Dimensions / net weight
141 x 288.5 x 34.5 (mm) / 370g

Frequently Asked Questions

What makes the IDS-3100 different from a white-light dermatoscope?

The IDS-3100 combines cross- and parallel-polarized white light with UV illumination. This gives you additional viewing options for fluorescence observation alongside conventional examination.

What magnification does it offer?

The IDS-3100 provides 10x magnification with an 18 mm field of view for examining skin detail.

Can I switch between polarized lighting and UV illumination?

Yes. You can select cross-polarized, parallel-polarized, or UV illumination to compare the appearance of the same area under different lighting conditions.

What is the benefit of its aspherical lens system?

The aspherical optics are designed to reduce peripheral distortion, helping maintain a clear view toward the edges of the image.

Does the IDS-3100 have an adjustable focusing dial?

No. The IDS-3100 does not include a focusing dial. If adjustable focus is a priority, consider a model with that feature, such as the IDS-9100, IDS-1100, or IDS-1100C.

Is the IDS-3100 rechargeable?

Yes. It uses a rechargeable lithium-ion battery and includes a desktop charging cradle for convenient charging between examinations.

Can I capture images with my smartphone?

Yes. Smartphone imaging is supported with a compatible phone attachment, sold separately. Contact us for help selecting the correct adapter for your device and phone.

What is the difference between cross- and parallel-polarized lighting?

Cross-polarized lighting reduces surface reflections to help reveal detail beneath the skin’s surface. Parallel-polarized lighting provides a complementary view of surface features. Switching between them lets you examine the same area from different perspectives.
