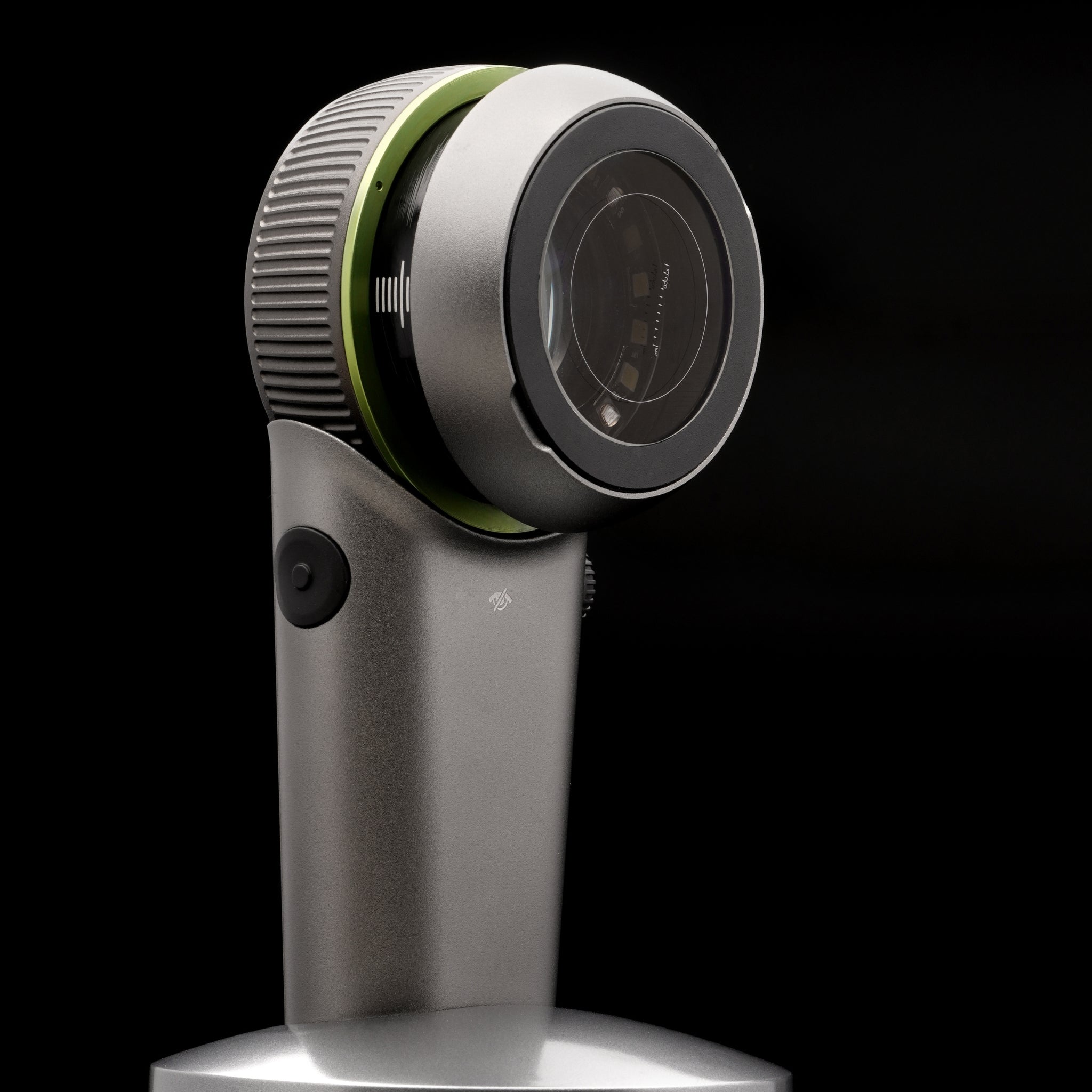

IDS-9100 Dermatoscope - 12x Optical Magnification
The IDS-9100 isn't just another dermatoscope. It's the first in the world to reach 12x optical magnification, and it's built to match that headline with the rest of its specs.
At 0.006 mm resolution and 40% less optical distortion than leading competitors, what you see is a truer image. Cross and parallel polarization let you toggle between surface and subsurface visualization instantly, while built-in UV illumination (365 nm, 18 mW) surfaces pigment changes and infections that standard lighting simply misses.
The 20 mm aperture captures more skin per view, reducing repositioning during lesion mapping. A diopter adjustment range of -6 to +6 accommodates prescriptions without additional accessories. The full metal body and 3,500 mAh battery (up to 5 hours of continuous use) are built for clinical settings where reliability isn't optional. Infection control film included.
80 LP resolution. 12 lighting configurations. One standard-setting instrument.
- IDS-9100 Main Unit
- Compact Universal Clamp
- Leather Pouch
- USB-C Charging Cable
- Infection Control Film
- User Manual
- Lens Cleaning Cloth
12x
Magnification
20mm
Aperture
UV
365 nm wavelength
Technical Specifications
The IDS-9100 features both parallel and non-polarized lighting modes, allowing you to clearly visualize skin surface and subsurface structures. This reduces reflection and glare, helping you detect pigmentation, vascular patterns, and lesions with enhanced clarity.
Equipped with 20mm field of view, the IDS-9100 captures wide, detailed images, reducing the need for repositioning during examinations of larger lesions or skin areas.

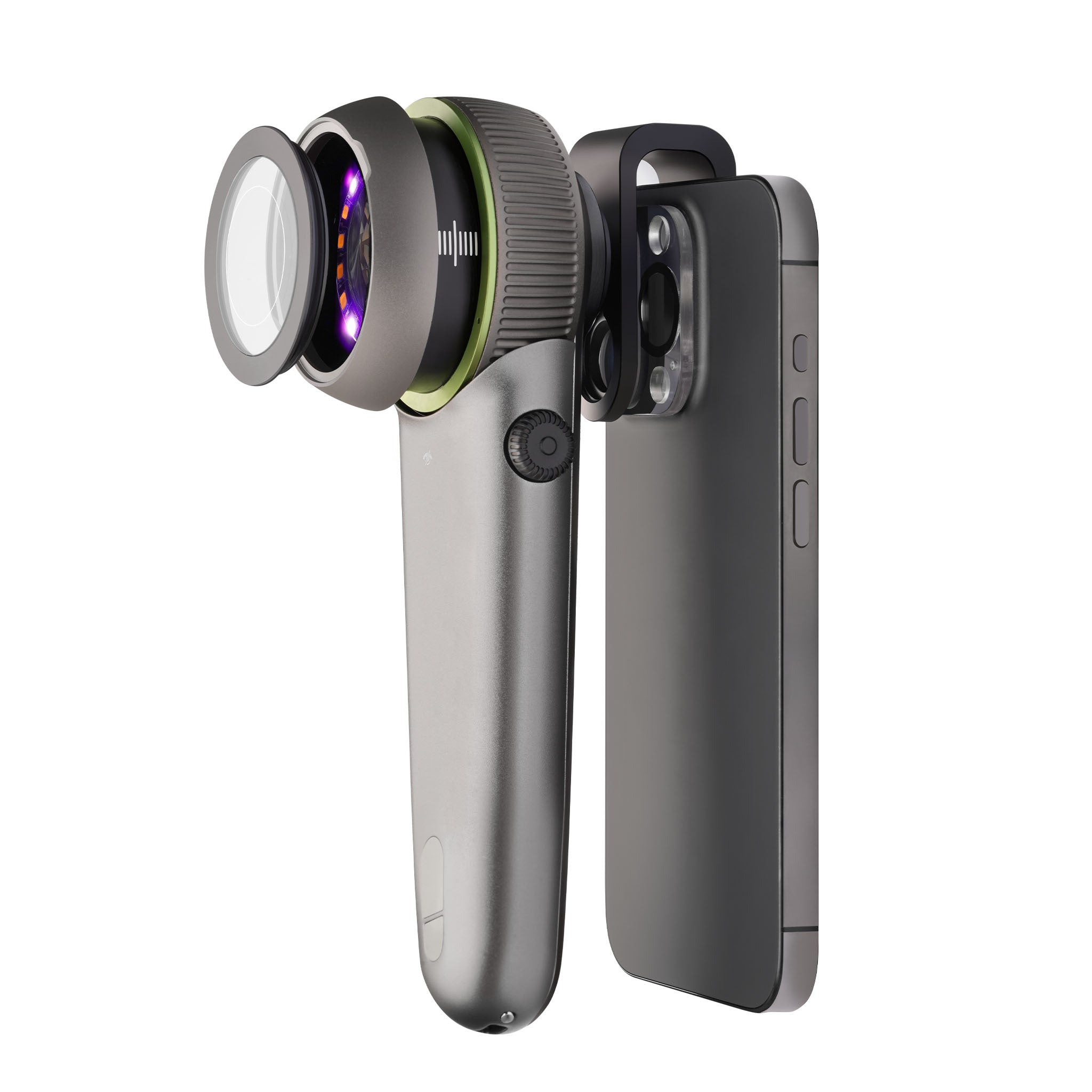

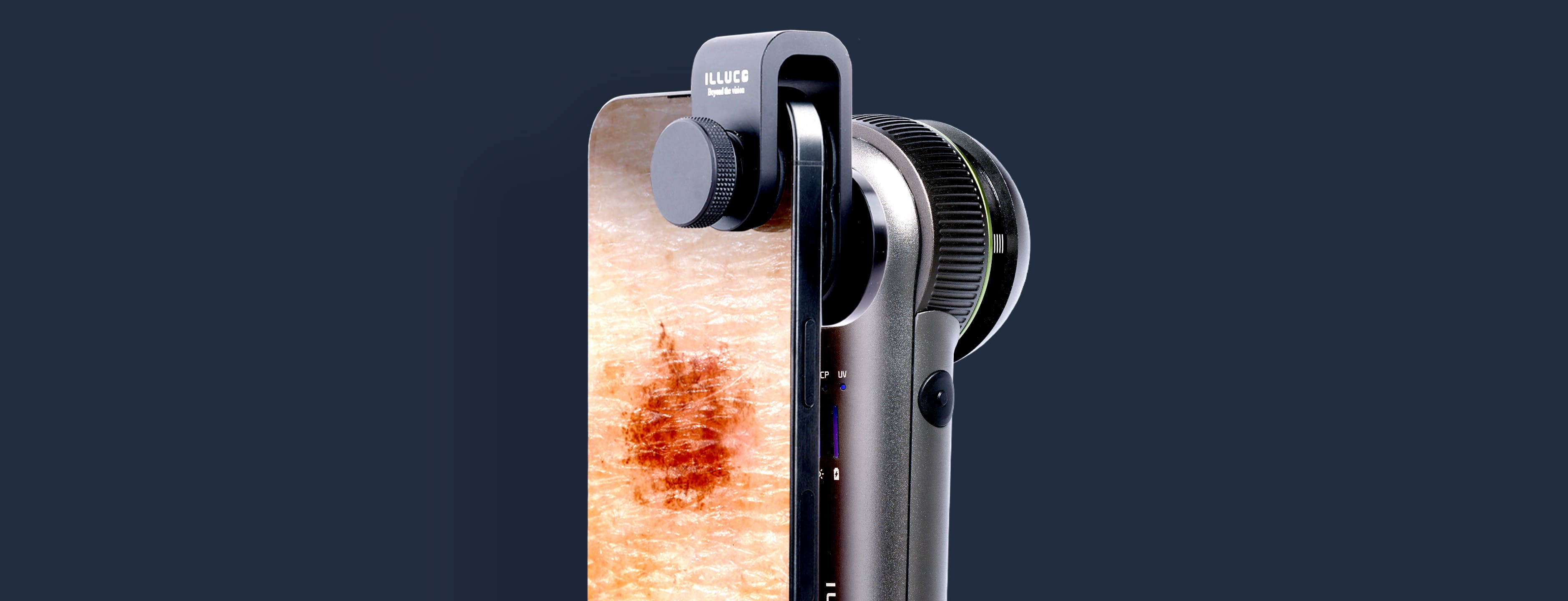

Easily connect the IDS-9100 to your smartphone or camera system for high-resolution image capture and seamless documentation, making patient recordkeeping efficient and organized.
Advanced 12x optical magnification with 0.006mm resolution allows for precise visualization of skin abnormalities, supporting accurate diagnosis of subtle dermatological features.
The built-in UV mode (365nm, 18mW) enables fluorescent imaging for better identification of pigmentation changes, infections, and other subsurface skin conditions, enhancing diagnostic confidence.
Powered by a 3.7V 3500 mAh lithium-ion battery, the IDS-9100 offers up to 300 minutes of continuous use and up to 14 days standby time, with convenient and fast USB-C charging.
The diopter adjustment range of -6 to +6 ensures sharp focus for all users, whether or not they wear corrective lenses, providing flexibility and precision during every exam.
See Beyond The Surface
Capturing high-resolution images of skin lesions is a an advancement in the field of dermatology and skin analysis.
See the difference in clarity and detail. The ILLUCO 9100 delivers 20% higher magnification, 2x higher resolution, and 41% less distortion compared to the D5. Capture, share, and teach with precision and diagnostics.
D5 10x
ILLUCO 9100 12x
Compare Top Dermatoscopes
See how ILLUCO Dermatoscopes delivers unmatched clarity, performance, and value for dermatology professionals.
- Magnification
- True FOV
- Weight
- Distortion
- Illumination
- UV
- Price
- Smartphone Connectability
- Resolution
- 10x
- 17 mm
- 170 g
- 5.8%
- 12 LEDs
- X
- $1503
- Yes
- 40.3LP
- 10x
- 17 mm
- 198 g
- 6.1%
- 18 LEDs
- X
- $1595
- Yes
- 40.3LP
- 10x
- 21 mm
- 287 g
- 6.8%
- 20 LEDs
- 365
- $1795
- Yes
- 40.3LP
- 10x
- 22 mm
- 190 g
- 5.5%
- 32 LEDs
- X
- $950
- Yes
- 50.8LP
- 12x
- 20 mm
- 306g (metal body)
- 4.0%
- 20 LEDs
- 365
- $1600
- Yes
- 80LP
Trusted by Experts
See how ILLUCO Dermatoscopes deliver unmatched clarity, performance, and value for dermatology professionals.
-
Polarization
- UV
- FOV
- Magnification
- LED
- Brightness Level
- Phone Compatibility
- Charging Cradle
- Focusing Dial
- Battery Type
-
Cross & Parallel
- -
- 18 mm
- 10x
- 8 White LEDs
- 1
- ✓
- -
- -
- Disposable Lithium 6V2CR5
-
Cross & Parallel
- -
- 25 mm
- 10x
- 32 White LEDs
- 3
- ✓
- -
- ✓
- Rechargeable Lithium 1150 mAh / 3.7v
-
Cross & Parallel
- -
- 25 mm
- 10x
- 32 White LEDs
- 3
- ✓
- ✓
- ✓
- Rechargeable Lithium 1150 mAh / 3.7v
-
Cross & Parallel
- 365 / 405 / 395+405
- 18 mm
- 10x
- 64 White and 6 UV LEDs
- 3
- -
- ✓
- -
- Rechargeable Lithium Ion 3400 mAh / 3.7v
-
Cross & Parallel
- 365
- 23 mm
- 12x
- 16 White & 4 UV LEDs
- 4
- ✓
- ✓
- ✓
- Rechargeable Lithium Ion 3500 mAh / 3.7
